GermanFingerprint Recognition Technology Provider

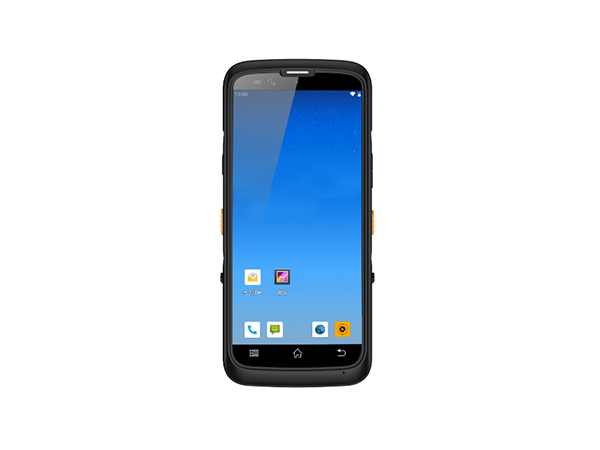

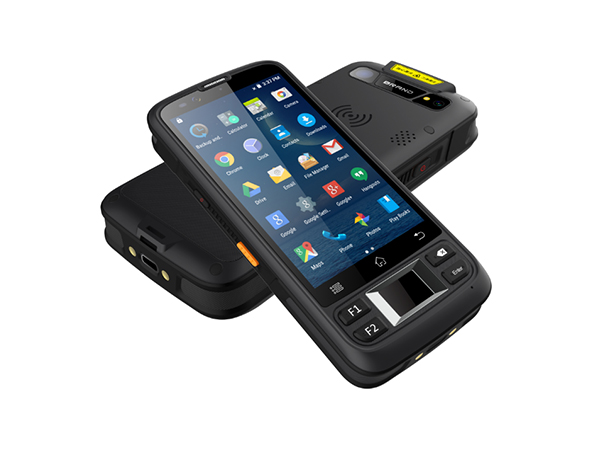

Biometric Handheld
Describe：The TC500 is a durable, reliable, and intelligent handheld terminal device that integrates biometric functions. The device features fingerprint ID card recognition, facial recognition, contactless NFC, and RFID, and is widely used in large-scale applications such as healthcare and law enforcement.
Product features
Powerful fingerprint identity verification: Our company's fingerprint algorithm combines with a capacitive sensor, producing clear fingerprint images and providing excellent performance in collecting and matching various types of fingerprints.
Accurate facial recognition algorithm: Our company's facial recognition algorithm is secure and reliable.
NFC: Contactless NFC.
RFID：Effective reading distance of 1-6 meters.
Ultra-long standby time: With a battery capacity of 5000mAh, the device can last up to 8 hours on a single charge.
Open operating system: The device can be equipped with an Android operating system and can be customized with various applications.
Product dimension drawing
Product technical parameters
Type | Detail | Standard configuration of the device includes |
Machine | Exterior dimensions | 178*80*24.7mm |
Weight | Bare machine weight: 1014g， Weight with color box and standard accessories: 1990g，Base: 290g，10000mAh battery: 250g | |
LCD | Screen size | The device has a 5.0-inch screen by default, but there is an option to upgrade to a 5.72-inch screen. |
screen resolution | 1280*720/Full screen：1440*720 | |
TP | Touchscreen | Multi-touch, Corning Gorilla Glass 3 tempered screen. |
Camera | Front-facing | Front-facing 5.0MP |
Rear-facing | Rear-facing 13MP, Auto-focus with flash | |
Battery. | Type | Removable polymer lithium-ion battery |
Capacity | 3.7V/5000mAh | |
Battery life | Approximately 8 hours (standby time > 300 hours) | |
CPU | Type | MTK 6762 8-core |
Speed | 2.0GHz | |
RAM | Memory | 3GB (optional 2GBor4GB)） |
ROM | storage | 32GB（optional 16Gor64G) |
Operating system | Operating system version | Android 9.0/12.0 |
NFC | Built-in | Supports ISO/IEC 14443A protocol, reading distance: 3-5cm |
WIFI | WIFI mode | WIFI 802.11 b/g/n/a/ac 2.4G + 5G dual-band WIFI.. |
Bluetooth | Built-in | BT5.0(BLE) |
2G/3G/4G | Built-in | LTE B1,B3,B5,B7,B8,B20,B38,B39,B40,B41 |
GPS | Built-in | Support |
RFID Function | Low frequency | Supports 125K and 134.2K; effective recognition distance 3-5cm |
High frequency | 13.56 MHz, supports 14443A/B; 15693 protocol, effective recognition distance 3-5cm | |
Super High frequency | China frequency: 920-925 MHz, US frequency: 902-928 MHz, Europe frequency: 865-868 MHz | |
Protocol standard: EPC C1 GEN2/ISO18000-6C. | ||
Antenna parameters: Ceramic antenna (1 dbi). | ||
Reading distance: Effective distance 1-6 meters based on different tags | ||
Fingerprint | Optional | Fingerprint module: Capacitive USB press-type module |
Image size: 256 * 360 pixels; FBI PIV FAP10 certification.； | ||
Image resolution: 508 dpi | ||
International standard | ||
Authoritative certification | ||
Acquisition speed: Single frame image acquisition time ≤0.25s | ||
Biometric recognition | Face recognition | Embedded face recognition algorithm |
Fingerprint acquisition | Supports capacitive finger press acquisition | |
Product reliability | Drop height | 150cm Power-on state |
Operating temperature | -20 °C to 50 °C | |
Storage temperature | -20 °C to 60 °C | |
Humidity | Humidity: 95% Non-Condensing |
