LD-9900-S

4-4-2 LED fingerprint Scanner(FAP60)

Describe:

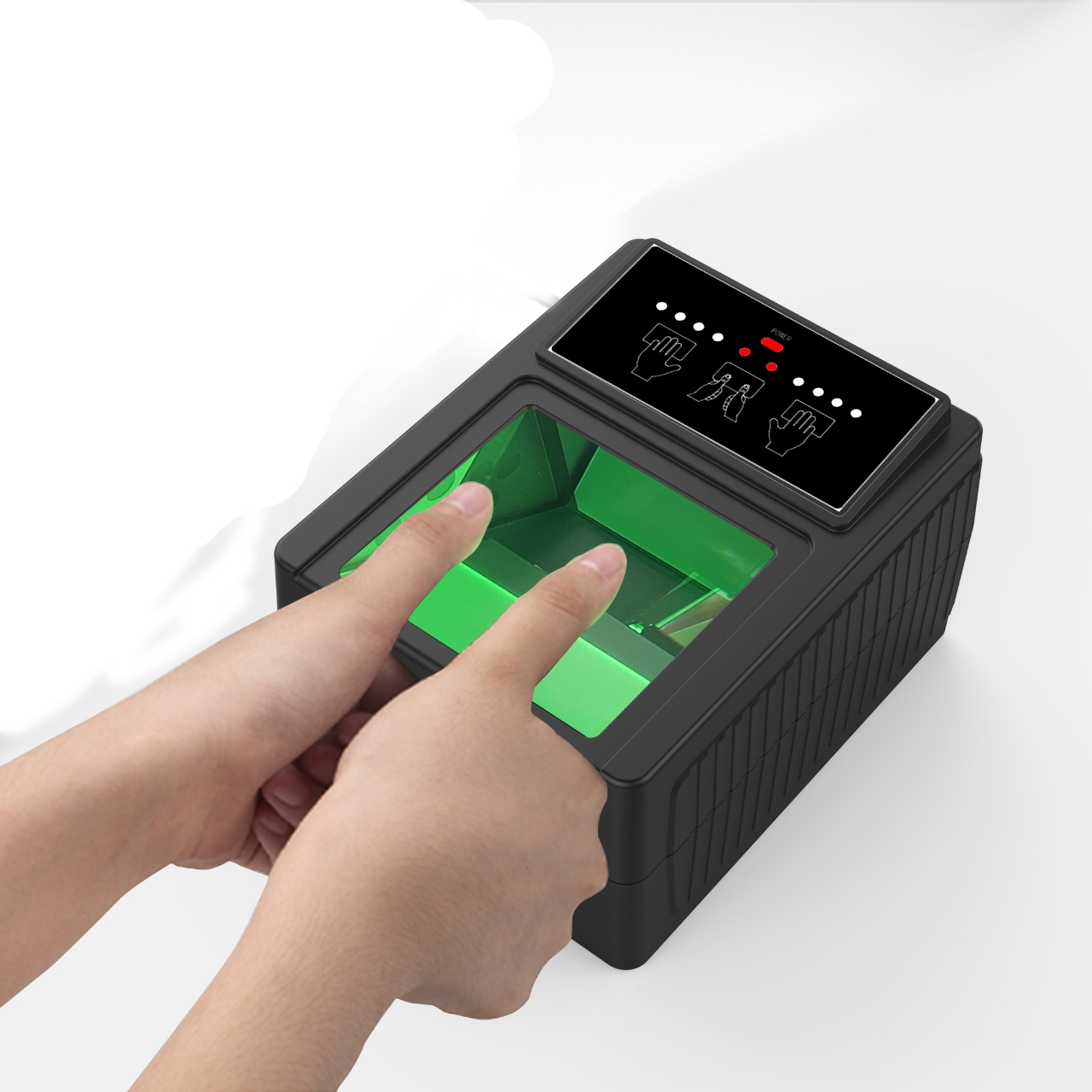

The AYF600 four-finger scanner produces clear images that fully meet the American FBI FAP 60 image quality requirements, supporting both left and right four-finger scans. The device supports dual thumb flat capture mode, single finger capture for all ten fingers, and single finger rolling capture mode. The scanner meets large-scale national and city-level fingerprint collection needs, providing important technical support and reliable assurance for large-scale public application systems.

Contact us
4-4-2 LED fingerprint Scanner(FAP60) Add to cart
Product Introduction

Product features

Ultra-high image quality: The optical distortion-free fingerprint imaging system provides high-fidelity fingerprint images, which is beneficial for extraction.

Powerful collection capabilities: The large capture window size integrates ten-finger flat, single-finger flat, and single-finger rolling capture in one device.

Fast capture speed: The four-finger scanner captures at least 10 FPS and supports real-time finger detection.

High adaptability: Applicable to various types of fingerprints, automatically clears residual fingerprint marks and halo effects, resulting in higher imaging quality.

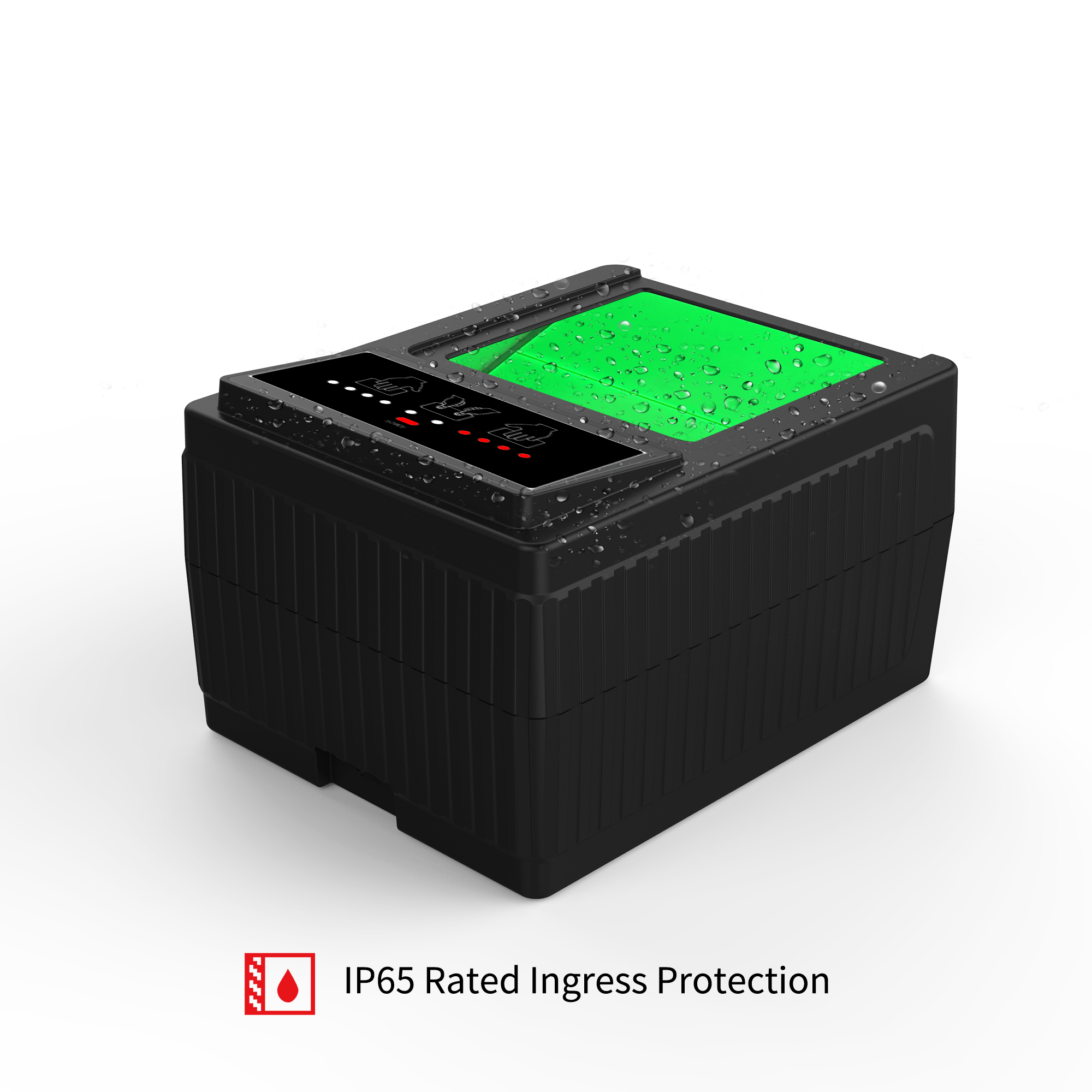

Durable and shock-resistant: The device features a sturdy design, wear resistance, strong anti-shock and anti-vandalism properties, and is resistant to electrostatic interference, ensuring a long service life.

Easy secondary development: SDK (Software Development Kit) is provided.

Voice control for convenience and intelligence : Supports a buzzer and voice guidance to guide users through the appropriate finger pressing operations.



Product specification

Electrical Parameters

Supply Voltage

5.0V±5% Provided by USB

Operating Current

Typical Value<700mA

Interface

USB2.0

ESD

Contact:±8KV;Air:±15KV

Environmental Parameters

Operating Temperature

-10℃-55℃

Storage Temperature

-40℃-60℃

Operating Humidity

<90%R.H(Non-condensing)

Storage Humidity

20~93% R.H

Fingerprint parameters

Image resolution

500dpi

Capture window size

≥88.0mm*86.0mm

Effective image size

Single finger

≥32.5mm*32.5mm

Four fingers

≥81.2mm*76.2mm

Image pixel count

Single finger

≥640*640 pixel

Four fingers

≥1600*1500pixel

Capture time

Single finger

≥25FPS/SEC(≤66ms)

Four fingers

≥10FPS/SEC(≤100ms)

Image distortion

≤1%

Uneven grayscale of image background

≤10%

Gray level

8-bit,256levels

Dynamic range of gray level

≥180levels

Gray value of image background

225~255

Image defect/pixel defect

No more than 10 pixels with a diameter of 2 within any 600*600 area

Image center deviation

Deviation between image center and capture window center: X and Y directions both ≤15 pixels

Weight

1250g

Scale

171*134*104(Length*Width*Height)

Software parameters


Image stitching (single finger rolling capture)

Image segmentation (four-finger planar capture)

Ohter

Finger position identification

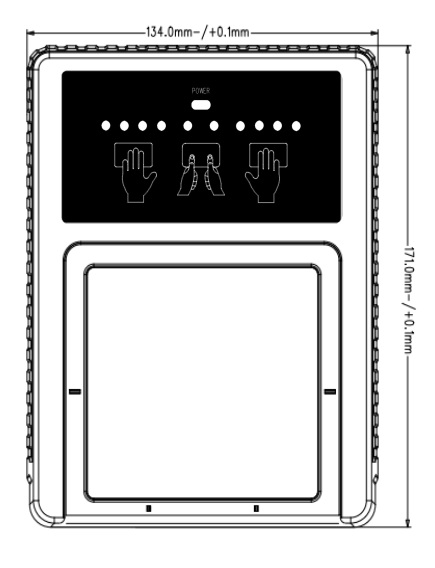

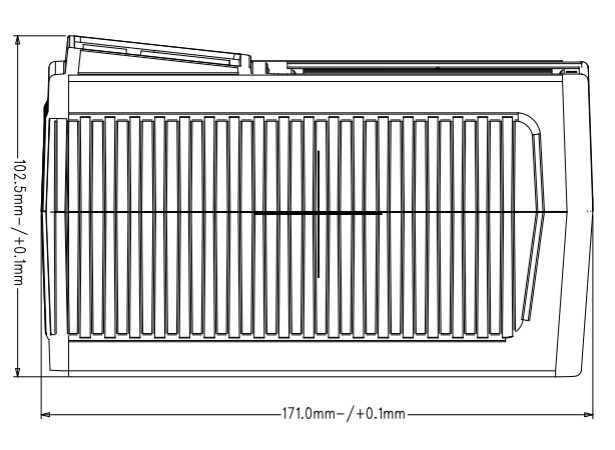

Product dimension drawing
